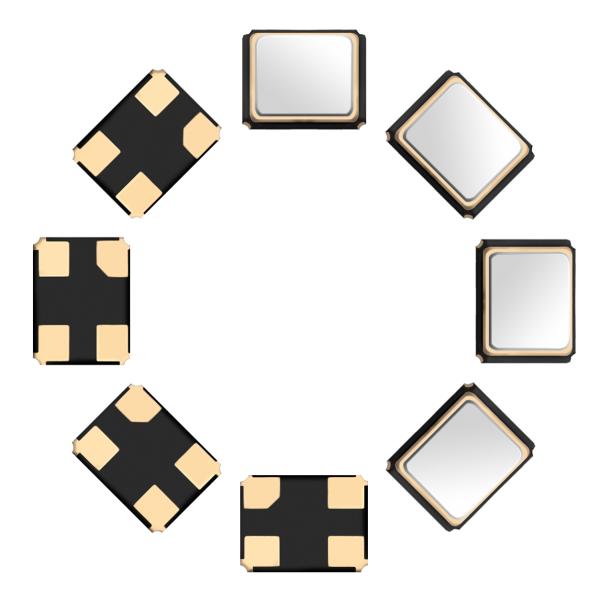

SMD Crystal Oscillator 25MHZ 3225 4Pin10ppm Made in China Rohs
product application
1 , The network card chip
2 , Network set-top box
3 , Optical transceiver
product features
25m crystal for the network card section, the network card to provide a working clock, but also for the NVIDIA chip power clocking in the required clock, voltage 1.1-2.2v.
The Crystal It has the characteristics of stability and anti-interference. It is widely used in various electronic products.
Mechanical test:
The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.
Dropping Test:
The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage,after allowing the crystal to fall freely.
From 75 cm of height 3 times on the firmed wood.
product advantage
The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop. The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.
Product specification
| Type | SMD3225 |
| Frequency Range(MHZ) | 25.000MHZ |
| Frequency Tolerance(at25℃) | ±10PPm ,±5PPm at25℃+/-2℃ |
| Frequency Stability vs. Temp(FL-T) | ±10PPm,±20PPm ,±30PPm |
| Operating Temperature range | -20~+70℃ -40~+85℃ |
| Storage Temperature range | -45~+80℃ |
| Temperature Characteristics | ±10PPm ±20PPm |
| Load Capacitance | 8 to 20 Pf or Serles |
| Aging | ±3 PPm/year |
| Insulation Resistance | 500MΩ(DC100V±15V) |
Dimension
Refluence examination
Frequency change:≤±5ppm
FAQ
Packing
3000pcs/tape.
Samples and technical support can be provided free of charge.
